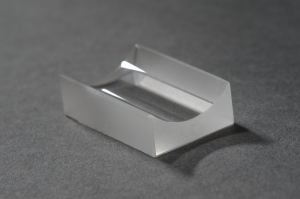

Plano-Concave Cylindrical Lens

Cylindrical lens is used to provide focusing power in one section only. For illumination or detection of light from line sources. Also used to anamorphic compression of beams and images. Especially widely used to anamorphic compression of LD (laser diode) output beam.



Material:                             BK7 or other optical glass

Focal Length Tolerance:     ±1%

Dimension Tolerance:         ± 0.01mm

Surface Accuracy:              λ/4 @632.8nm

Surface Quality:                 40-20

Centration:                       ＜3′

Clear Aperture:                   > 90%

Bevel:                                0.2mm×45°

Coating:                            user-defined
