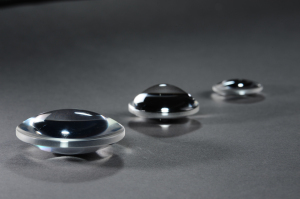

Double-Convex Lens

A double-convex lens is compose of two convex surfaces, has a positive focal length. Normally Bi-Convex lenses are most suitable where the object and image are on opposite sides of the lens, and are popular for many imaging applications.



Material:                        BK7 Optical glasses,CaF2,BaF2, MgF2,Ge,Si,Fused Silica

Diameter Tolerance:     +0.0/-0.02mm

Thickness Tolerance:    ± 0.01mm

Surface Accuracy:        λ/4 @632.8nm

Surface Quality:           20-10

Centration:                  1′

Clear Aperture:            > 90%

Bevel:                          0.2mm×45°

Coating:                      user-defined
