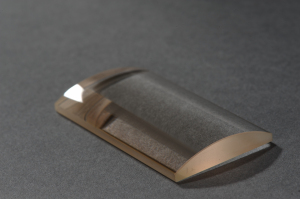

Plano-Convex Cylindrical Lens

Plano-Convex Cylindrical Lenses have one flat (plano) surface and one cylindrical surface curved outward (convex).They can be used to focus light into a thin line and are typically used for collecting and line focusing light in many applications including optical metrology, laser scanning, side pumping of laser dye cuvettes and optical processing.​



Material:                             BK7 or other optical glass

Focal Length Tolerance:     ±1%

Dimension Tolerance:         ± 0.01mm

Surface Accuracy:              λ/4 @632.8nm

Surface Quality:                 40-20

Centration:                       ＜3′

Clear Aperture:                   > 90%

Bevel:                                0.2mm×45°

Coating:                            user-defined
