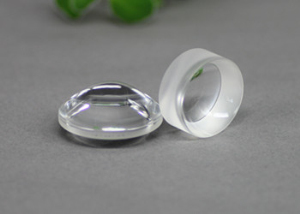

BaF2 Product

Barium fluoride crystal shows good optical transmittance over wide spectrum range, from 150nm to 12.5μm. It is used for windows, lenses and prisms, particularly for the application of ultraviolet transmittance. The highest quality of BaF2 has an application as the well know scintillation crystal.




Material:                        BaF2

Diameter Tolerance:     +0.0/-0.02mm

Thickness Tolerance:    ± 0.01mm

Surface Accuracy:        λ/4 @632.8nm

Surface Quality:           60-40

Clear Aperture:            > 90%

Bevel:                          0.2mm×45°

Coating:                      user-defined
